9 or 10 Frame Supers - Thinking Out Loud

When I bought my bee smoker on e-bay last spring, the seller included a free metal 9 frame spacer in the box as an added bonus.

While standing in my workshop the other night trying to plan ahead for this year, I re-discovered the 9 frame spacer and found myself wondering if I should switch from 10 frame supers to 9 frame supers this year.

I've read my fair share of books, magazines, blogs, online editorials, etc., and 9 vs 10 frame supers is definitely a popular topic.

Several sources sited advantages of using only 9 frames such as the ease to manipulate and inspect frames, the ability to collect additional wax during harvest, the cost savings of one less frame per super, and of course the holy grail of harvest time, full frames of capped honey that extended way beyond the end bars so that a knife (electric heated or cold serrated) could easily uncap the frames.

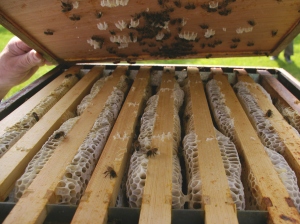

After all, reducing the number of frames by one gives the other frames, if spaced out evenly, more room for the bees to draw the wax out further. Below is a picture of a super with 9 frames, where the wax is drawn out way beyond the frame bars.

I've seen arguments that converting from 10 frames to 9 frame supers can produce extra honey, while others say the additional amount is negligible, and others still say they see no difference.

Of all the material I've read through, one question still bugged me. If I switched from 10 to 9 frames in the super, would I also have to switch from 10 to 9 frames in the brood boxes? After all, the frames would no longer align vertically, and wouldn't that cause confusion, congestion and even weird burr comb inside?

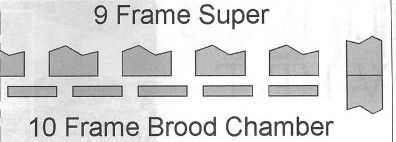

I was about to give up searching for my answer, when I stumbled on an article from Bee Culture, January 2006 that discussed this topic. It had calculated the offset of each of the 9 frames in the super and showed how they were staggered over the 10 frame brood box below, causing a blockade near the center most frames.

The only way for the bees to climb up from the brood box to the super in this situation, if they were to come up the center of the boxes, was to make two consecutive turns in a tight area. The author noted how he witnessed congestion of bee traffic up into the super, and returning down into the brood box because of these staggered frames.

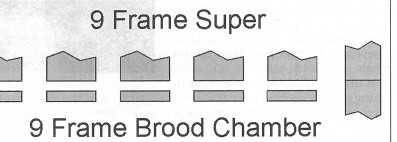

The suggested solution is to either stay with 10 frames (in brood box and supers) or if reducing the supers to 9 frames was desired, to reduce the brood chamber to use 9 frames also, thus the frames would all align again as shown below.

Now that I think about it, I am thinking out loud after all, I don't think I really want to reduce my brood box to 9 frames. Since I'm not running a commercial operation, and I enjoy taking my time inspecting the hives, I'm OK with removing the outer most frame, setting it on a frame rest, and scooting over the other frames to inspect as necessary.

In addition, I don't know that I want to give up the extra frame of cells for the queen to lay into or for pollen collection.

While I think it would be nice to have honey super frames where the wax cappings extended out beyond the end bars, I don't mind using a capping scratcher to uncap the frames during harvest.

I think I'll keep my 10 frame brood boxes and 10 frame supers this year. I'll hang onto the 9 frame spacer for now just in case I change my mind.

If you have converted from 10 frames to 9 frames in your supers, I'd love to hear your experience and recommendation. Did you run 9 frames in the super only, or convert your brood boxes also? Did you notice any additional congestion or problems otherwise?

Comments For This Post: (4) | Post Your Comments! Hide The Comment Form
Holly says...
Date:   January 18, 2012, 8:25 pm

Thanks for the detailed info about this topic...the pictures really help. This past summer I accidentally left a frame out of the bottom brood box when introducing a colony and when I remembered this error a few weeks later, I figured it was too late to correct the problem.  I'm curious to see the burr comb situation this spring, but unfortunately this hive will have a new owner because I am moving.

athenasbees says...
Date:   January 30, 2012, 4:02 pm

Hi Chris, I was wondering about this myself as two beekeepers in my rural community I highly respect do this: 10 brood, 9 for honey. I never think to ask them when I have the chance. I switched to 8 frame hives and was told by our very veteran state beekeeping inspector that 8 frame hives don't do well in cold climates. I protested that the bees just don't fill-in the outer frames so what is the point? The cold, of course. Those frames of foundation they leave on the ends act as insulation. He also suggested I turn my supers around, to get an even distribution of comb, pointing out  that the bees were concentrating their activity on the side of the hive most protected from the wind...even though the whole yard is pretty protected, sure enough, the bees knew which way the wind was blowing.

SC beekeeper says...
Date:   May 22, 2015, 11:21 am

Hi i noticed that 9 frame is more convenient for honey harvesting. I use metal queen excluders with wooden frame around. This way there more space between brood boxes and supers. Ideally 2 brood boxes with 10 frames then excluder on top and then 2 - 4 medium supers with 9 frames. I  would not recomend to switch 10 frame to 9 frame in brood boxes, because bees can make a mess with combs.

Peter Montague says...
Date:   May 17, 2016, 6:14 pm

I realise this is quite old but for what its worth I do 9 honey and 11 brood.  The argument for 9 honey frames is because there is 1 less frame there is also one less space between the frames and the bees draw the comb out to give the same bee space between the combs as when there were 10 so the total volume of honey is increased by the volume of the spaces between the frames.  When running 9 frames in the supers its recommended to use drawn out frames only.  If you use empty frames or  frames of foundation the bees can build out into the plane of the one next to it preventing you from being able to pull it up without breaking the comb.

Bees don't want deeper cells in the brood chamber so don't use 9 in there.  They will actually tolerate (some say prefer) a smaller bee space then the standard configuration allows for.  The 11 frame set up is done by removing 1/8 from each end bar to make the frames skinner and allowing for an 11th in the brood chamber.  The positive to this is an extra frame of brood which if your using mediums and running small cell that's an extra 4,500 bees out of a box.  The other positive is that the bees in between two frames don't fit back to back so a bee keeping the brood warm on one frame is also doing the same for the brood behind it.  The theory is that it takes less bees to take care of the brood which adds resources elsewhere.
